AF-80S

Automatic Liquid Filling Machine

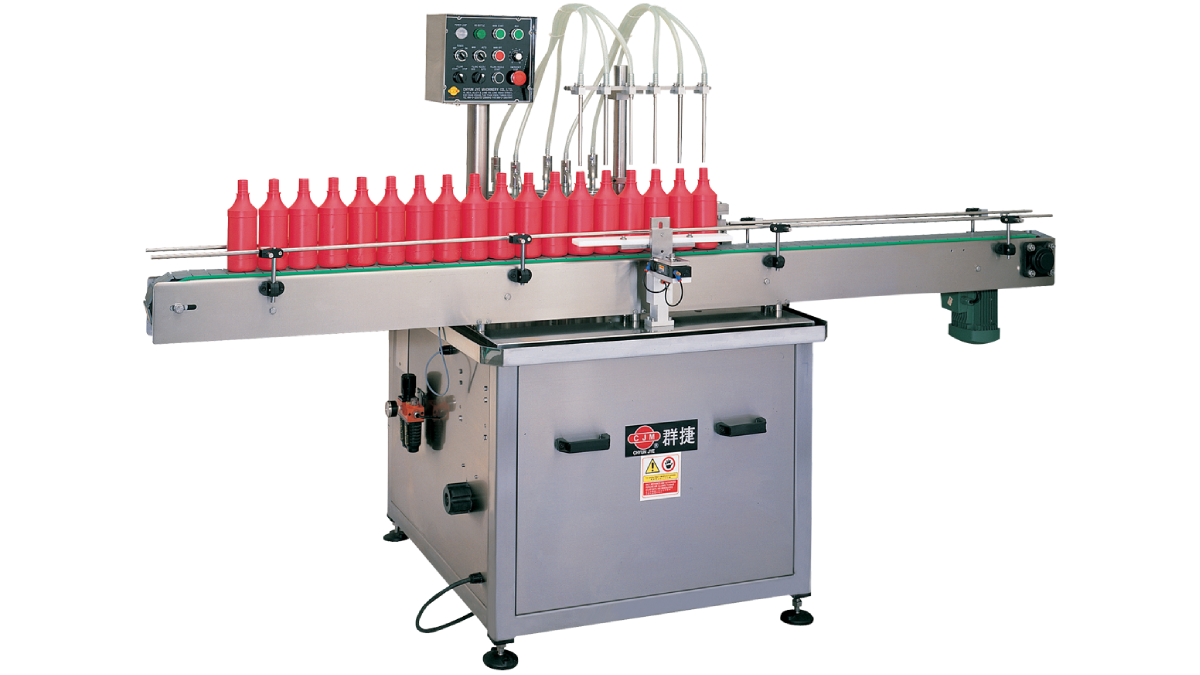

af80s mainpic

AF-80S liquid filling equipment common application is for above 60mL high viscosity liquid products such as shampoo, honey etc.

The filling procedure applies piston filling method with pneumatic check valves and nozzles to minimize liquid leaking after filling procedure is completed.

The filling volume adjustment is computerized with servo motor controlled to increase operation convenience and reduce the adjustment time. And the optimized filling deviation is capable to reach ±1% of piston cylinder maximum volume.

Specification

Model AF-80 SS AF-80 SM AF-80 SL
Filling Volume 200ml-600ml 600ml-2000ml 2000ml-5000ml
Working Capacity 60-80 bottles/min 30-60 bottles/min 8-16 bottles/min
Filling Nozzle 8pcs 6pcs 4pcs
Power Consumption 220V single phase, 50/60HZ
Air Consumption 200 L/min @6 Bars
Machine dimensions (LxWxH) 3048x1184x2160 (mm)
Machine Weight 900KGS
