CSH-F

Semi-automatic Ointment Filling Machine

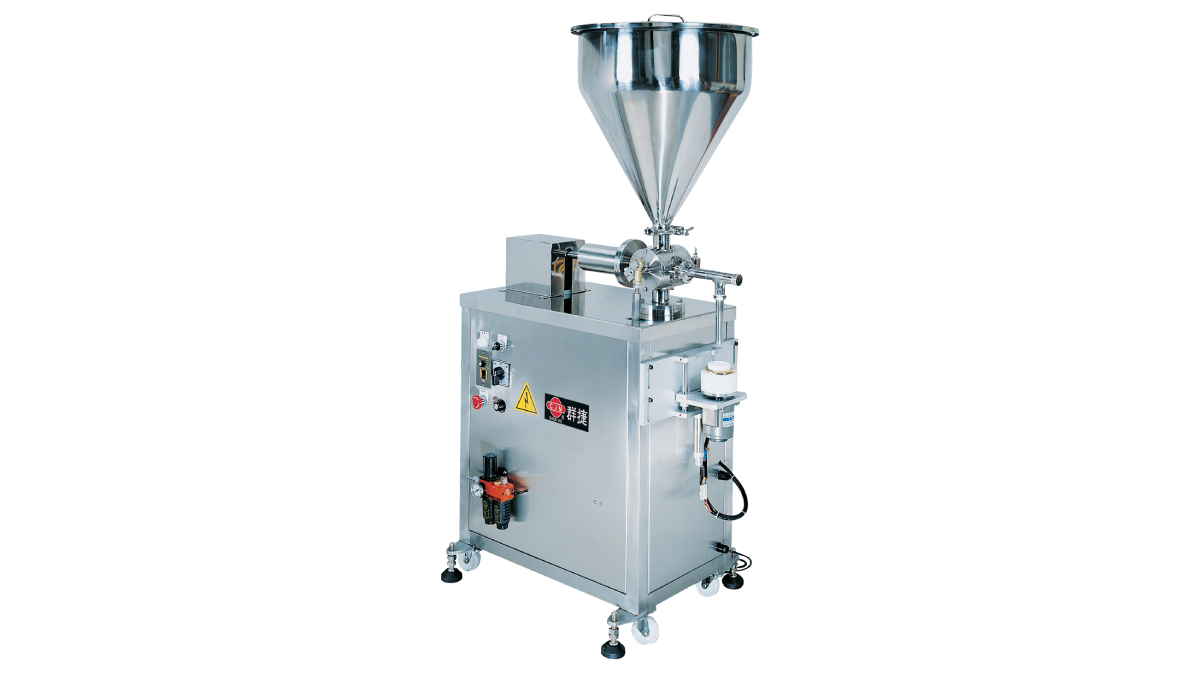

main pic csh f

The ointment filling equipment is semi-automatic volumetric filler for high cohesion material such as gel, cream and etc.

By applying the piston filling method is capable to stabilize volume accuracy and minimize deviation.

With the storage tank heating system can keep material flow stable to reduce risks influencing the machine performance.

Specification

Model CSH-F Semi-Automatic Ointment Filling Machine
Filling Volume 5ml-60ml, 30ml-150ml, 100ml-500ml
Working Capacity 10-30 bottles/min (Based on filling volume)
Power Consumption 220V single phase, 50/60HZ
Air Consumption @ 6 Bars
Machine Dimensions (LxWxH) 505x655x1825 (mm)
Machine Weight 150KGS
